Warehouse pallet racking systems

    The pallet racking system is adjustable according to your needs and desires.

    Detailed specifications catalog

    Starting unit: EUR 626.90

    Next unit: EUR 476.89

    • Frame sizes are available from 2 – 12 m, with 20 cm increments (2000 / 2200 / 2400 mm etc.)
    • Frame width - 75 cm or 115 cm. Wide range of frames by type and according to the required load capacity.
    • Standard width of beams - 1.8 m, 2.7 m, 3.6 m (2, 3 or 4 Euro pallet places). Other specific sizes of beams are also available upon request.
    • Wide selection of beams by type and according to the required load capacity.
    • Wide range of pallet racking accessories is available.
    • We keep available constantly:
      • Frame H-3600/5000/7000, W-1130
      • Beam L-3600, load capacity - 4500 kg
      • Beam L-2700, load capacity - 3800 kg
      • Beam L-1800, load capacity - 2860 kg
    • Shelving orders for which all elements are on the site, can be obtained immediately after payment is made.
    • If the necessary elements are not on the site – then they are transferred for manufacturing once the advance payment is made. Manufacturing and delivery time - 4 to 6 weeks.
    • We also offer delivery and installation services. The costs depend on the size of the premises and the location.

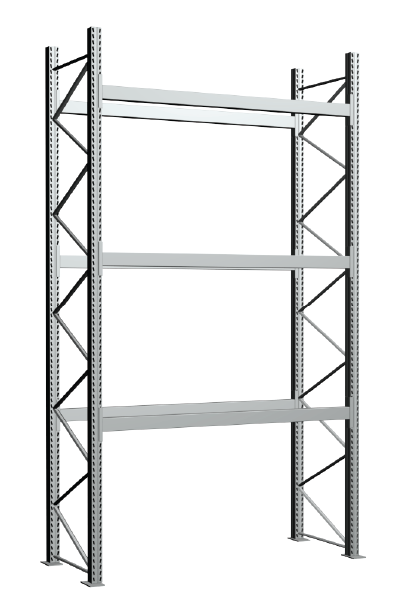

    Starting unit

    Frames in the unit Beams in the unit Description Price (EUR)
    Frame H-5000 / 2 pcs. Beam L-2700 / 6 pcs. Starting unit price H-5000 L-2700 W-1130 626.90

    Prices indicated without VAT.

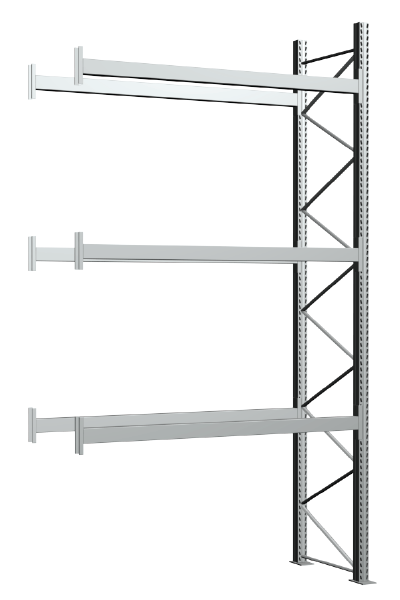

    Next unit

    Frames in the unit Beams in the unit Description Price (EUR)
    Frame H-5000 / 1 pc. Beam L-2700 / 6 pcs. Next unit price H-5000 L-2700 W-1150 476.89

    Prices indicated without VAT.



    Permanently in the warehouses

    Detailed list of elements: Price (EUR)
    Frame [S] G-1130 H-5000 /gray/ 145.81
    Beam L-2700 /120X50X1.5/ Claw H-250 /blue/ 3210 kg 54.38
    Beam lock HX H-53 /galvanized/ 0.05
    Rack fixing armature n L-81 0.61
    HX Stabilization plate /82/ GR. 1.2MM /galvanized/ 0.88
    HX Stabilization plate /82/ GR. 2.0MM / galvanized / 1.41

    Prices indicated without VAT.
